Wax Press

Wax Press
Wax Press
Product Code : 35
Product Description

Wax Press

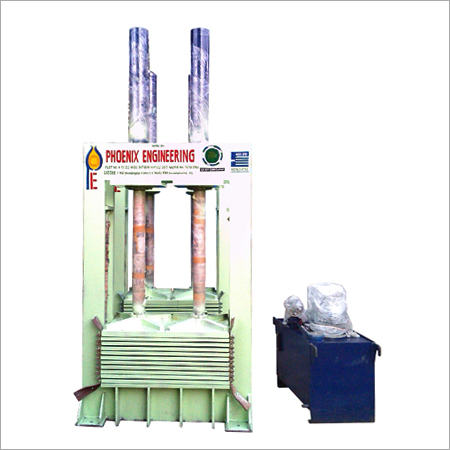

Hydraulic Wax De-oiling Press (Double Cylinder - Top Press)

Platen size: 600 x 1000 mm.

Hydraulic cylinder: Hydraulic double acting cylinder bore

Approx 130mm

Shaft - 100mm dia fitted with imported seals UK, Germany or Italy make with hard chromium plated shaft stroke 1100mm

Hydraulic power pack consisting with

  • 7.5HP flange mounting electrical motor 1440 rpm 3phase crompton, kirloskar, bbl make
  • Hydraulic gear pump 25 lpm
  • Radial plinjer pump 5c
  • Hydraulic check valve for pressure holding
  • Bell housing for double pump
  • Solinoid operated directional valve
  • Pressure controller modular valve
  • Filler breather
  • Oil level indicator
  • Oil reservoir 200 letter approx with out oil
  • Control panel with dol starter
  • Glycerine filled pressure gauge with indicator valve
  • Pipes & pipe fittings
  • Fully automatic system.
  • Capacity: approximately 1.5 tons per day
